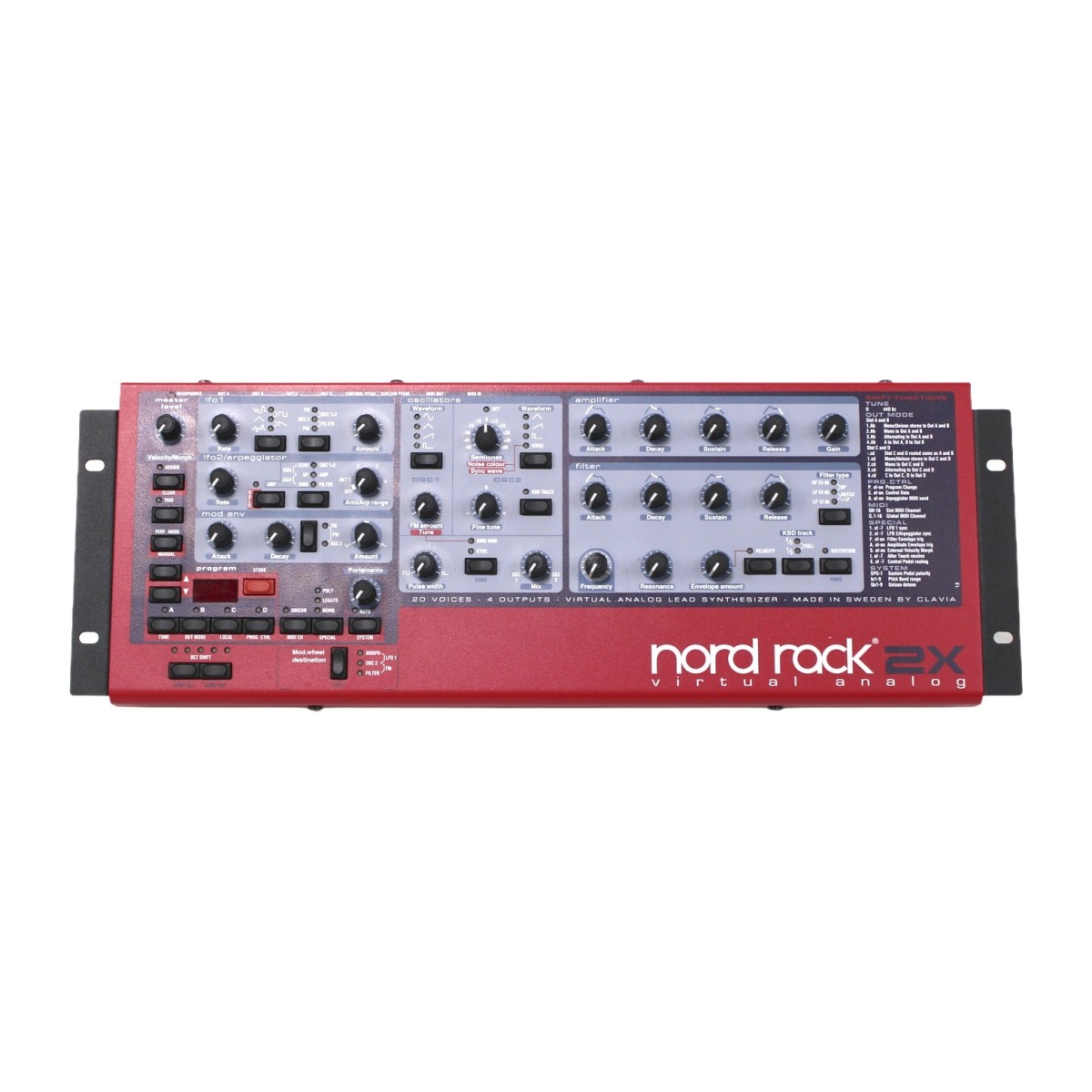

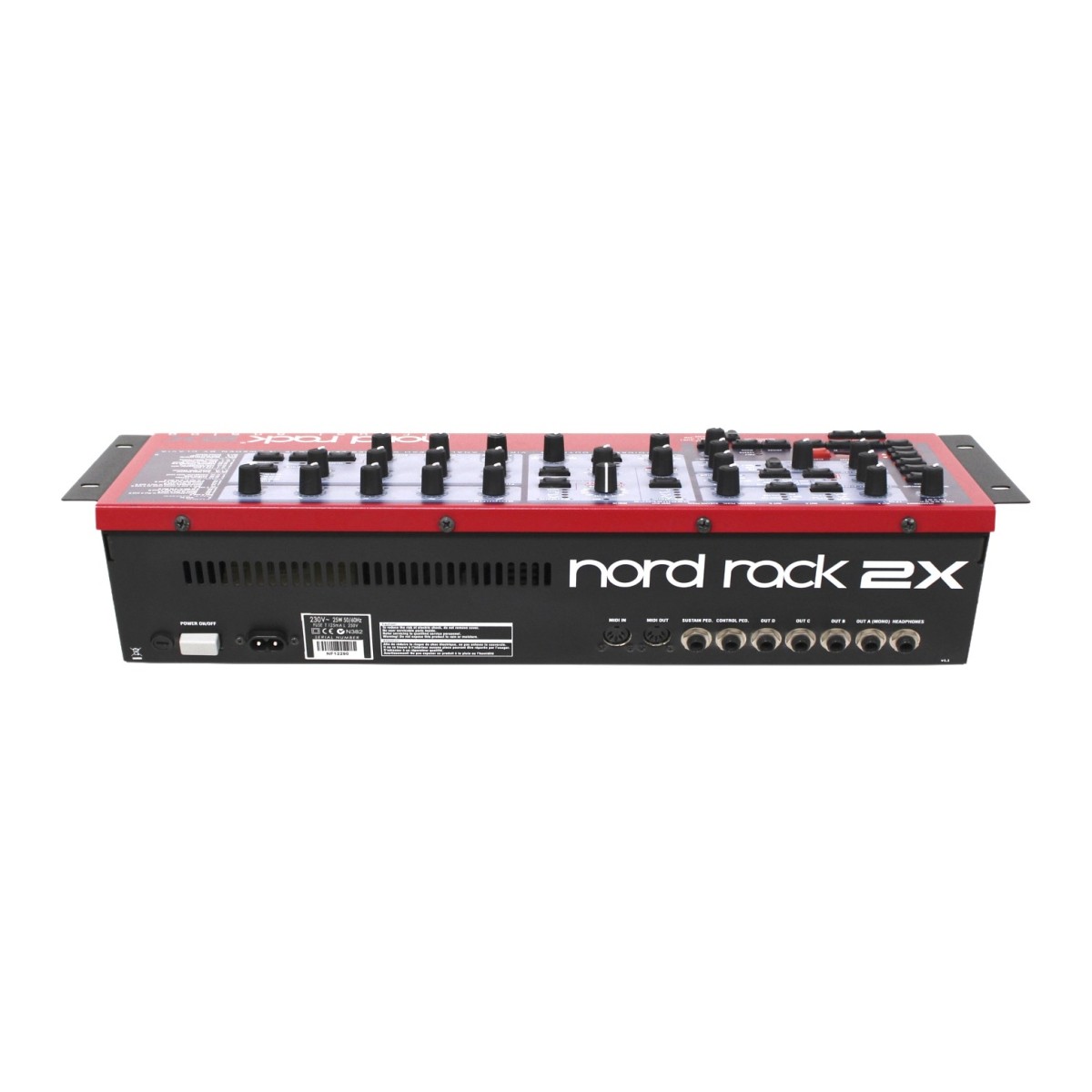

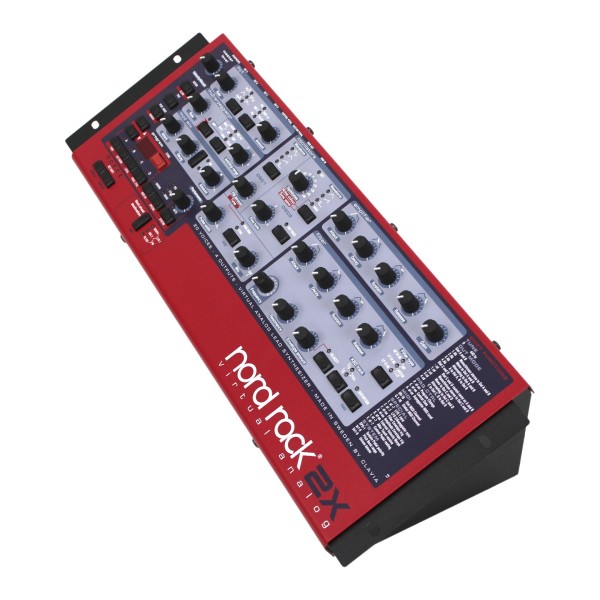

Nord Lead 2X Rack - Secondhand

Full Description

The original Nord Lead and Nord Lead 2 are among the most popular synthesizers ever built. Debuting in 1995, the first Nord Lead virtual analog synthesizer took the music world by storm. It instantly became an industry standard and takes a place among the most revered classic synthesizers.

The Nord Lead 2X has the same characteristic sound and functions as the Nord Lead 2, except for some very nice improvements:

X-tra polyphony: The Nord Lead 2X comes with 20 voices polyphony - very useful when creating layered sounds, "power pads", awesome leads and booming basses. 20 voices are also very beneficial in sequencing situations when you use more than one sound at a time.

X-tra memory: The Nord Lead 2X comes with a large internal memory holding 4 x 99 user Programs, 100 user Performances and 4 x 10 user Percussion Kits plus 6 x 99 factory Programs and 3 x 100 factory Performances! The Nord Lead 2X is 100 patch compatible with the Nord Lead 2 which means that you can transfer sounds directly between the models via MIDI.

X-tra high resolution: The awesome sound in the Nord Lead 2X is refined even further thanks to the brand new, crystal clear 24-bit DACs running at 96kHz.

Specifications:

POLYPHONY

20 voices. 4 part multitimbral.

SPECIAL FEATURES

Velocity Morphing: each function, controlled by a knob, can be controlled to respond to keyboard velocity. Wheel Morphing: each function, controlled by a knob, can also be controlled by the Modulation Wheel/Control Pedal to continuously fade between two sets of values.

Keyboard Split, two sections.

1 pedal input for sustain

1 for expression pedal.

User interface

3 digit display, 26 knobs and 27 buttons for program editing.

Oscillator section

OSC 1 generating sine, triangle, sawtooth or pulse with adjustable width, waveforms. OSC 2 generating triangle, sawtooth or pulse (with adjustable width) waveforms and can also generate noise with a color control. OSC 2 can be hard-synched to OSC 1.

Linear deep frequency modulation of osc 1 from osc 2. A wide range of new waveforms with a strong formant character is achieved with the new synchable noise, where noise can be synched to OSC 1.

Filter section

12 dB (2-pole) low pass, 24 dB (4-pole) low pass, band pass or high pass and notch with 12dB low pass. Cut off, resonance, envelope amount, envelope amount controlled by velocity. ADSR envelope. Filter keyboard tracking can be set to full, half or off. Filter distortion.

Amplifier section

ADSR envelope, gain control.

Modulation section

LFO 1 generating triangle, saw, pulse, LF filtered noise and random staircase routed to OSC1+2, OSC 2, filter, pulse-width and FM amount.

LFO 2 produces a triangle waveform, routed to OSC 1 and 2 or amplifier. It also controls the rate for the arpeggiator. Arpeggiator: Range: 1 - 4 octave. Modes: up, down, up/down, random. Hold function. Echo can be set between 1 to 8 repeats. Modulation envelope (attack, decay) for OSC 2 pitch, FM amount and pulse width.

Performance section

Play mode: Poly, legato, mono, unison mono, unison poly. Manual mode. Four program slots for layering possibilities. Portamento/auto portamento.

Percussion kits

10 analog drum kits. Each percussion kit consists of 8 independent sounds, configurated in 8 zones across the keyboard.

Dimensions

865(W) 265(D) 105(H) mm. Weight 5.3 kg.
