Viscount Legend Solo Portable Organ - Secondhand

Full Description

Tonewheel Modelling Technology

The Viscount Solo Portable Organ uses the very latest in physical modelling technology in order to perfectly replicate the sound of a classic tonewheel organ. The advanced simulation perfectly models important idiosyncrasies of the vintage tone such as octave tapers, tonewheel flutter, electric hum, and crosstalk. Viscount's Tonewheel Modelling Technology (TMT) is also responsible for the excellent rotary speaker simulation found on this portable organ.

Flexible routing solutions

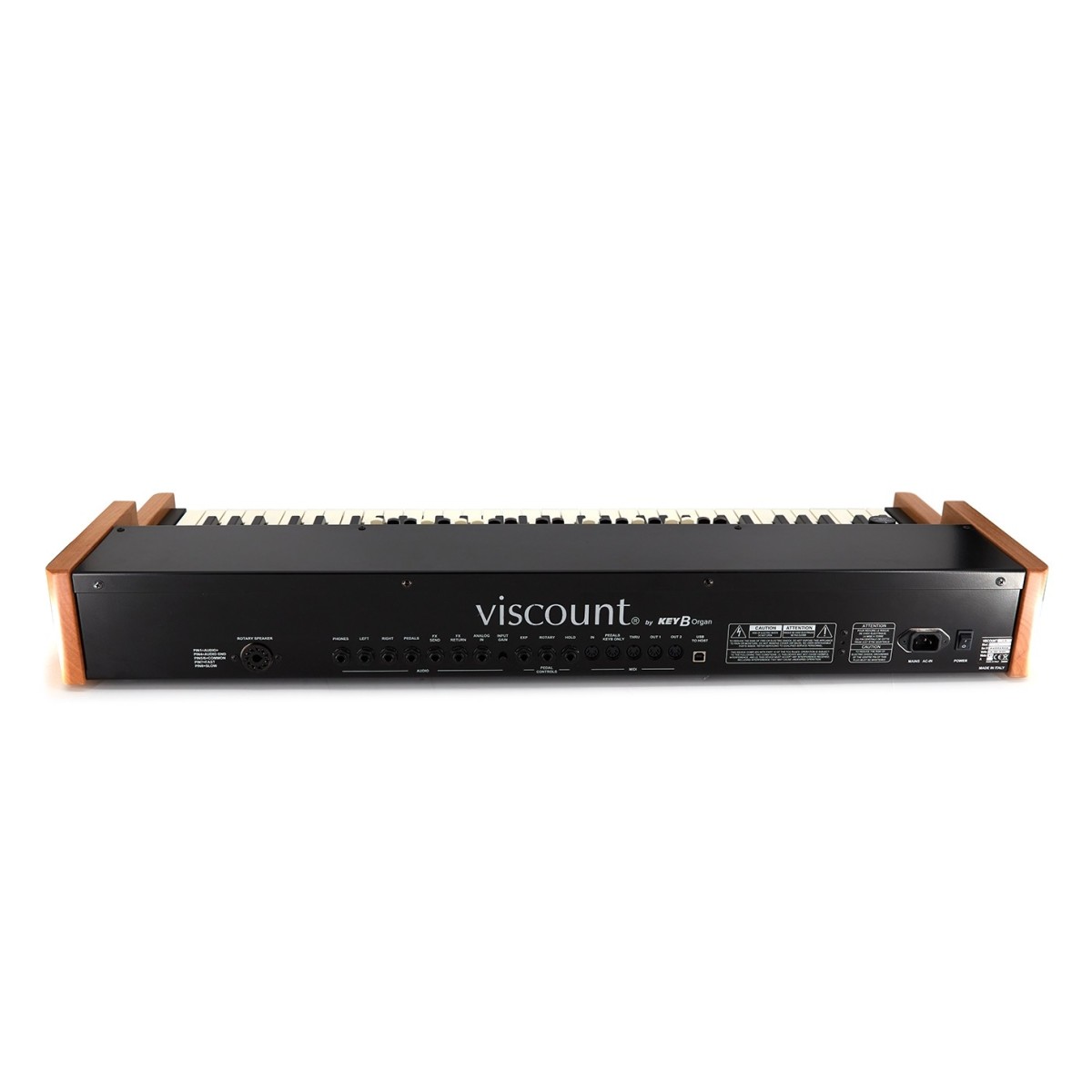

Whether you're taking to the stage or the studio, this organ comes with a full suite of connections to meet your needs. There's a collection of MIDI inputs and outputs, including a pedalboard input and USB to HOST. You can route through external FX pedals, and there is even an 11-pin connector for a rotary speaker - so whatever your setup, the Viscount Legend Solo Portable Organ has the ability to fit into it.

Viscount

Based in Mondaino, Italy, Viscount are famed for their world-class organs and leading work on physical modelling. Viscount instruments are produced with a focus on tradition and craftsmanship whilst embracing technology. The passion for music at the heart of the company is evident in their finely made instruments.

Specifications

General

• Dimensions (WxHxD): 93.4 x 12.4 x 36.7cm (36.8" x 4.8" x 14.5")
• Weight: 9.5kg (20.94lb)
• Keyboard: 61 notes waterfall

Sound generator

• Technology: TMT (Tonewheel Modelling Technology)
• Transposer: -6 to +5 semitones
• Fine tuning: +/- 1/4 tone
• Crosstalk: Unique crosstalk created for each tonewheel model
• Keyclick: New, state-of-the-art design
• Tonewheel model: '30, '50, '70, Alt. 1, Alt. 2, Alt. 3
• Harmonic percussion: On/off, volume soft/normal, decay fast/slow, harmonic percussion 2nd/3rd, percussion decay and volume controls

Effects

• Vibrato/chorus: Upper on/off; lower & pedal on/off; select: V-1, V-2, V-3, C-1, C-2, C-3
• Reverb: Newly modelled spring and hall reverbs
• Overdrive: Classic, rock
• Rotary simulation type: Classic, rock with direct option, Memphis mode

Interface

• Controls: Volume, reverb, drive, keyclick, crosstalk, tone controls, percussion volume and decay, tuning, rotary speed control, split/double, octave up, pedal to lower, transpose
• Drawbars: 2 sets of 9 drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
• Drawbars - upper preset: Upper drawbar set A or set B + 4 presets and upper MIDI local on/off
• Drawbars - lower preset: 4 presets
• Drawbars - pedals: 2 drawbars: 16' & 8'
• MIDI In, Out, Thru: Out 1, Out 2, In, Thru, Pedalboard In
• OUTPUT connections: L&R LINE OUT 6.35mm jacks; Pedals direct out 6.35mm jack (without C/V and rotary emulation); 11 pin rotary speaker (without rotary emulation); 2 stereo headphone 6.35mm jacks; TRS digital expression pedal 6.35mm; Rotary emulation footswitch 6.35mm jack; USB to HOST; USB HOST type A (power charger only); FX send
• INPUT connections: Audio input mono with adjusting gain pot; FX return
