Key Features
- Warm, musical tones thanks to three-band EQ modelled on iconic British consoles
- Features four high quality XENYX preamps
- Rugged design makes it ideal for touring
- Add excitement to your recordings with one-knob compression
- Excellent for live performances and studio recordings.

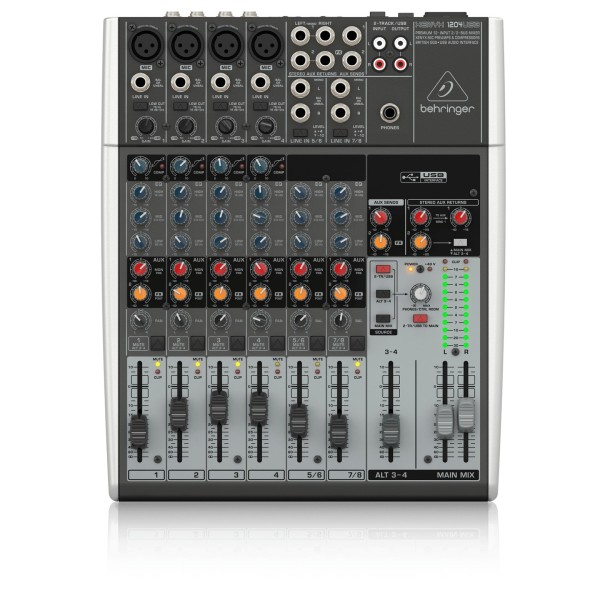

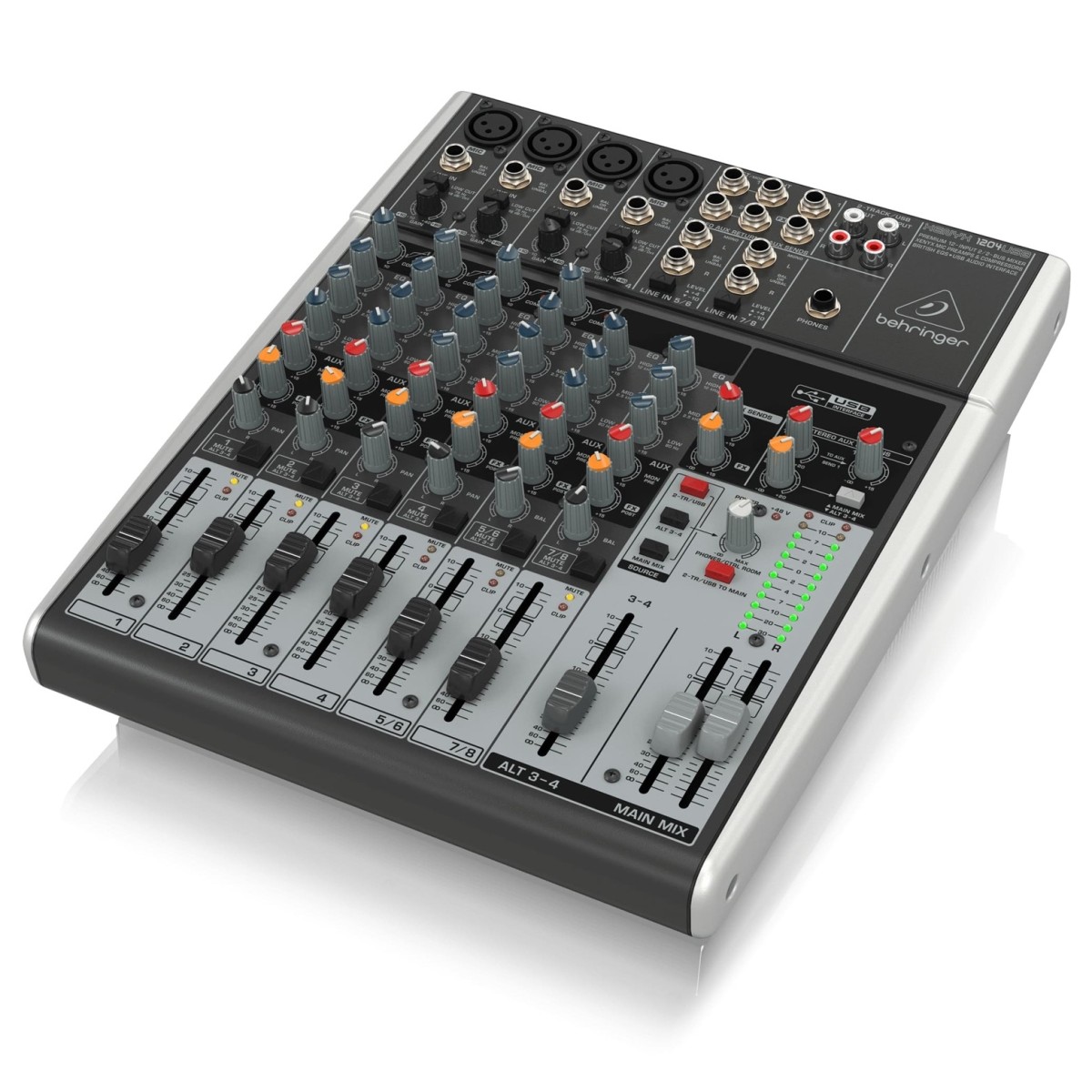

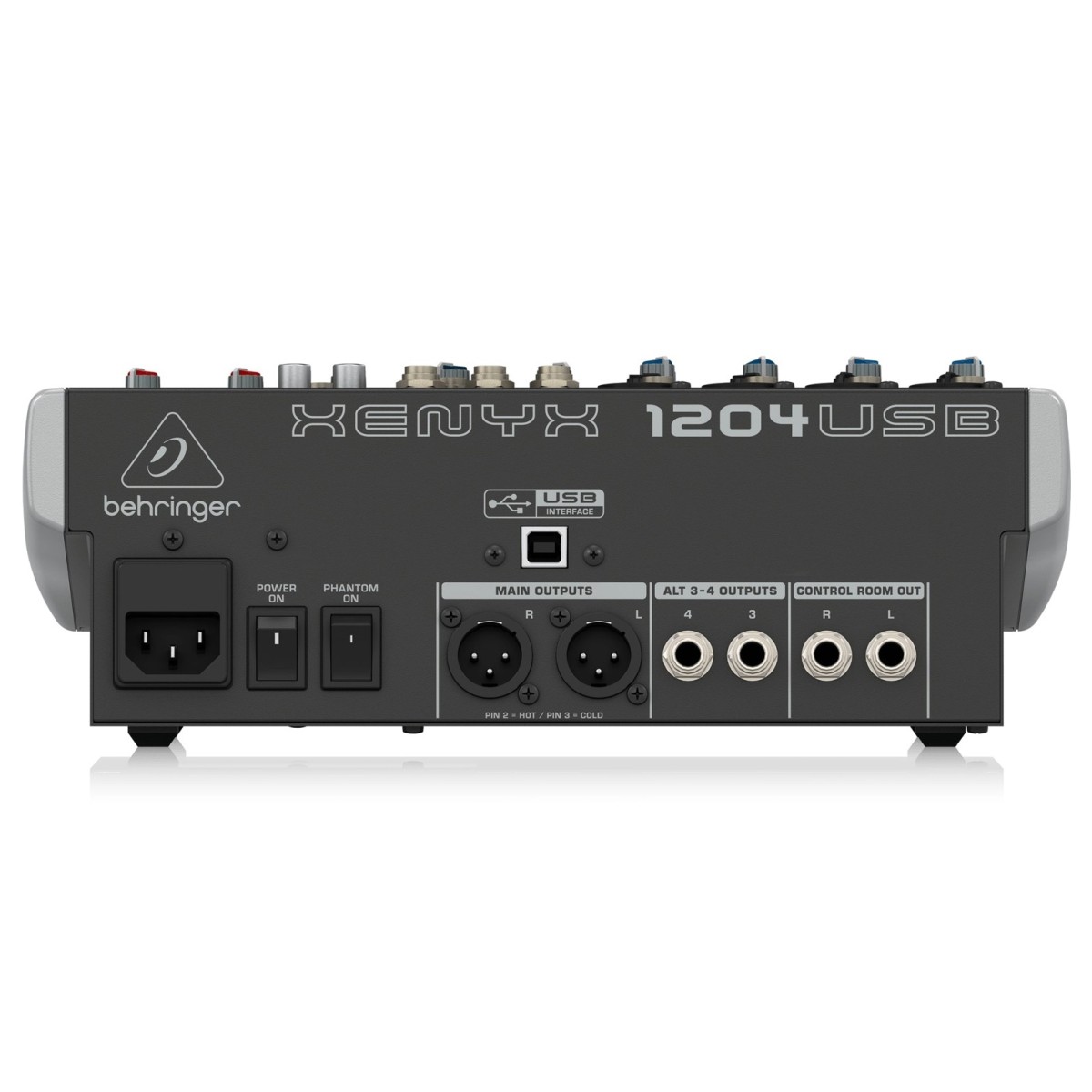

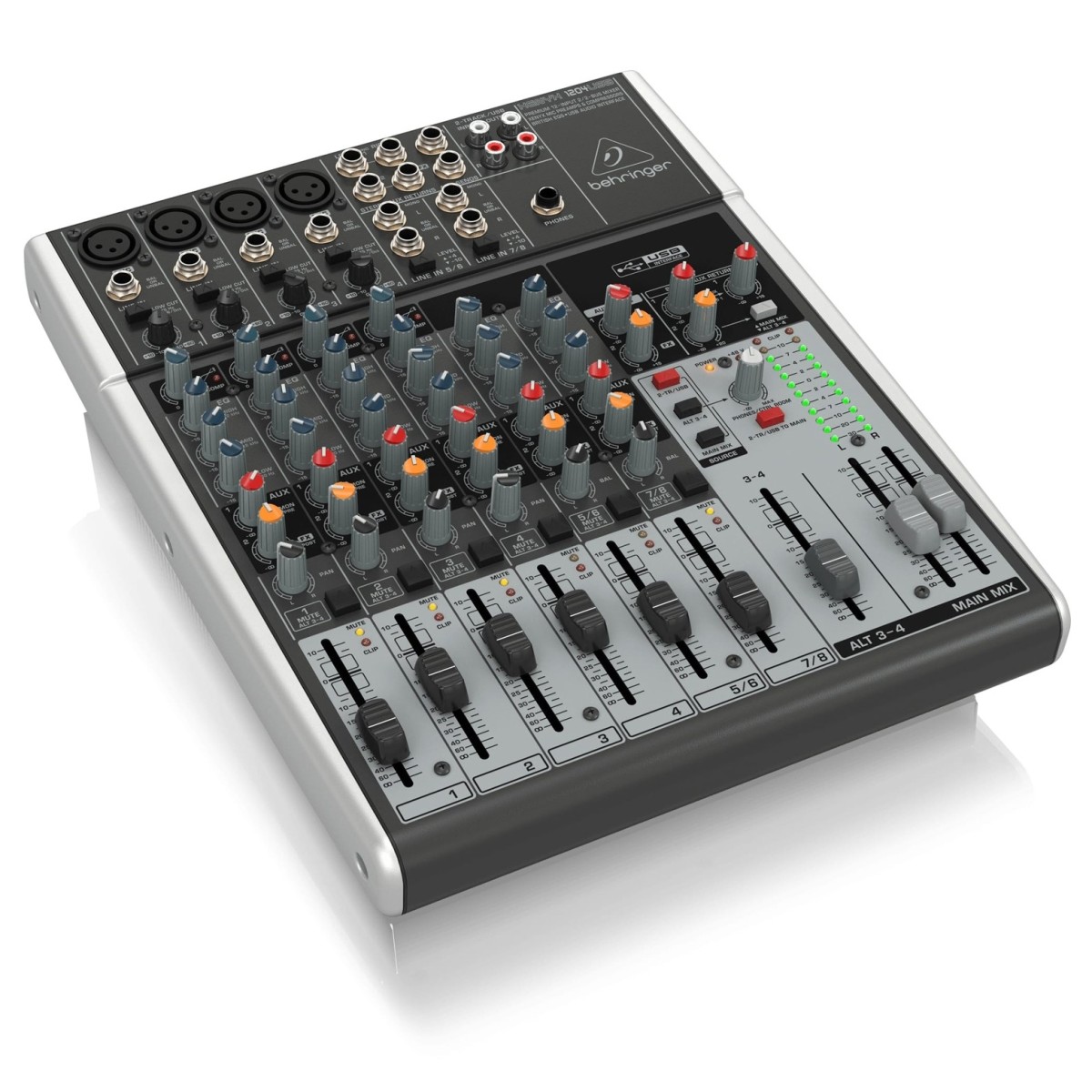

Behringer XENYX 1204USB Analog Mixer - Nearly New Overview
The Behringer XENYX 1204USB Analog Mixer aims to provide you with all the tools necessary to achieve an outstanding performance. Whether you're on stage or recording at home Behringer have you covered.
The XENYX 1204USB features ten inputs, including four high quality XENYX preamps. These will provide you with an exceptional low noise floor and excellent levels of headroom. Sculpt your sound with the three band EQ, modelled on the sonic characteristics of iconic British recording consoles. You'll be rewarded with the richest of lows and warmest of highs. The 1204USB will be an invaluable tool to add to your arsenal.
Nearly New: This product may have been opened for quality control purposes, returned by a customer, refurbished, or may have non-essential parts or software missing. Otherwise, the product operates as new. This is a great opportunity to buy a fully functioning product at a discounted price.
Product Ref: 374857
Full Description
View Full DescriptionSonically superior mic preamps
Behringer XEYNX preamps are renowned for their unique sonic performance. With an impressive 130dB of dynamic range and a frequency bandwidth of 10Hz to 20kHz the XEYNX preamps are the ideal choice for home recording and live use. Ensuring high quality and outstanding clarity, you'll own preamps which excel on a wide array of sources. From guitars to percussion, to vocals and bass. There's nothing that the XEYNX preamps won't shine on.
Sublimely musical British EQ
British mixing consoles are renowned for their analog warmth and unique sonic qualities. Behringer have meticulously studied and incorporated the same style circuitry on the 1204USB's three band channel EQ, providing incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.
One-knob compression
The "one-knob" compression function is available on all mono channels and allows you to dial in the perfect amount of compression for both instruments and vocals. Delivering powerful mixes with punch and clarity, the "one-knob" compression is easy to operate and a rare feature for mixers within this price range.
Features
- Premium ultra-low noise, high headroom analog mixer
- 4 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
- 4 studio-grade compressors with intuitive "one-knob" functionality and control LED for professional vocal and instrumental sound
- Neo-classic "British" 3-band EQs for warm and musical sound
- Built-in stereo USB/Audio Interface to connect directly to your computer
- Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins and ultra-low latency driver downloadable at www.behringer.com
- 2 aux sends per channel: 1 pre/post fader switchable for monitoring/FX applications, 1 post fader (for internal FX or as external send)
- Clip LEDs, mute/alt 3-4, solo and PFL functions on all channels
- 2 subgroups with separate outputs for added routing flexibility
- 2 multi-functional stereo aux returns with flexible routing
- Balanced main mix outputs with gold-plated XLR connectors plus separate control room, headphones and 2-track outputs
- Control room/phones outputs with multi-input source matrix
- Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
- "Planet Earth" switching power supply for maximum flexibility (100-240V ), noise-free audio, superior transient response plus low power consumption for energy saving
- Rack mount brackets included for ultimate flexibility
- Designed and engineered in Germany
Specifications
- Power Consumption: 40W
- Mains Connection: Standard IEC
- Dimensions: 97mm x 270mm x 328mm / 3.8" x 10.6" x 12.9" (H x W x D)
- Weight: 2.8kg / 6.2lbs
Mono Inputs
- Connector: XLR, Electronically Balanced, Discrete Input Circuit
- Frequency Response: 20Hz-20,000Hz
- Gain Range: +10dB to +60dB
- Maximum Input Level: +12dBu @ +10dB Gain
- Impedance: Approx. 2.6k Ohms Balanced
- Signal-to-Noise Ratio: 110dB / 112dB A-Weighted (0dBu In @ +22dB Gain)
- Distortion: 0.005 / 0.004 A-Weighted (THD+N)
Line Input
- Connector: 1/4" TRS, Electronically Balanced
- Impedance:
- Balanced: 20k?
- Unbalanced: 10k?
- Gain Range: -10dB to +40dB
- Maximum Input Level: 30dBu
Stereo Inputs
- Connector: 1/4"' TRS, Electronically Balanced
- Impedance: Approx. 20k?
- Maximum Input Level: +22dBu
USB
- Audio: Stereo In/Out
- Connector: Type B
- Converter: 16-Bit
- Sample Rate: 48kHz
EQ Mono Channels
- Low: 80Hz / 15dB
- Mid: 2.5kHz / 15dB
- High: 12kHz / 15dB
EQ Stereo Channels
- Low: 80Hz / 15dB
- Mid: 2.5kHz / 15dB
- High: 12kHz / 15dB
Aux Sends
- Connector: 1/4" TS, Unbalanced
- Impedance: Approx. 120?
- Maximum Output Level: +22dBu
Stereo Aux Returns
- Connector: 1/4" TRS, Electronically Balanced
- Impedance: Approx. 20k? Balanced/10k Ohms Unbalanced
- Maximum Input Level: +22dBu
Main Outputs
- Connector: XLR, Electronically Balanced
- Impedance: Approx. 240? Balanced/120? Unbalanced
- Maximum Output Level: +28dBu
Control Room Outputs
- Connector: 1/4" TS, Unbalanced
- Impedance: Approx. 120?
- Maximum Output Level: +22dBu
Headphones Output
- Connector: 1/4" TRS, Unbalanced
- Maximum Output Level: +19dBu / 150? (+25dBm)
- Product Code: 1204USB
